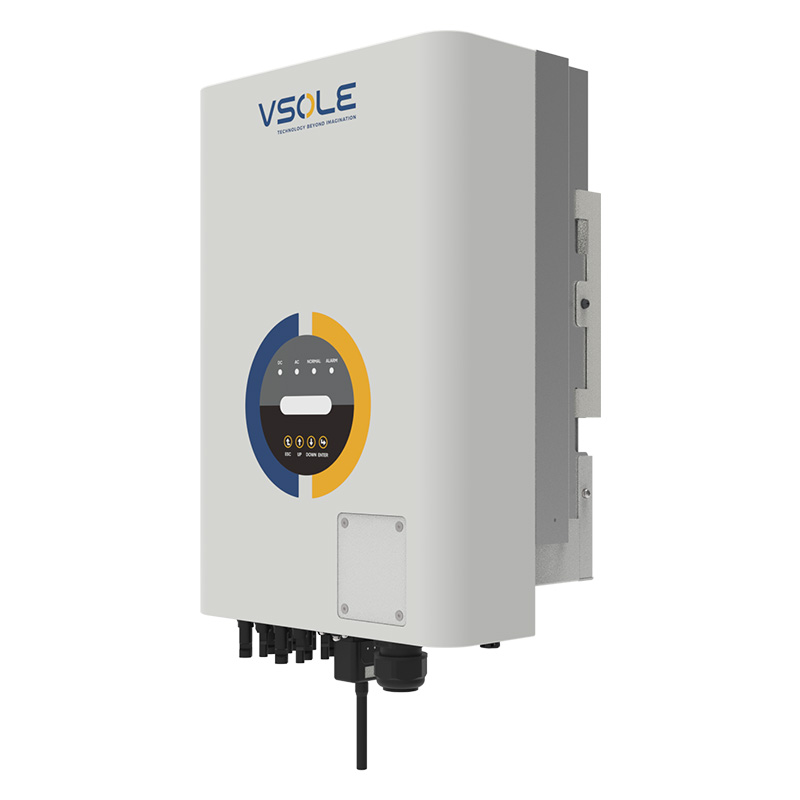

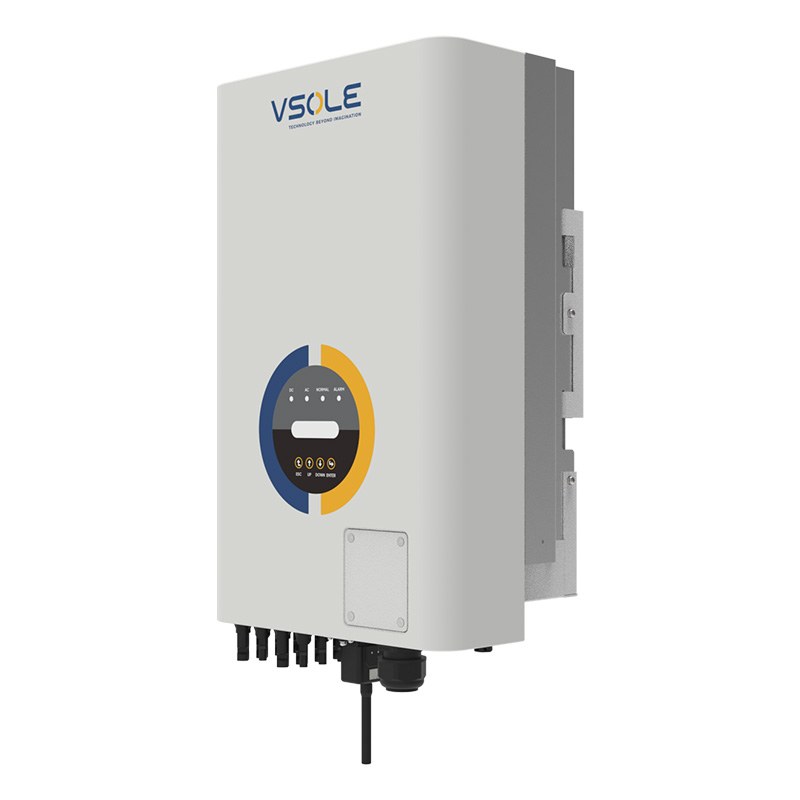

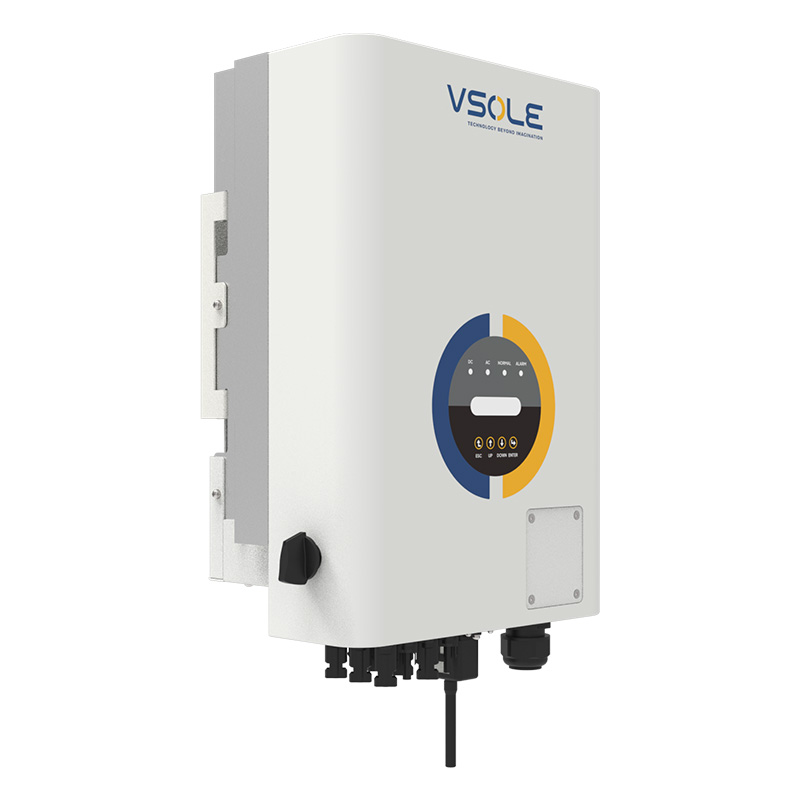

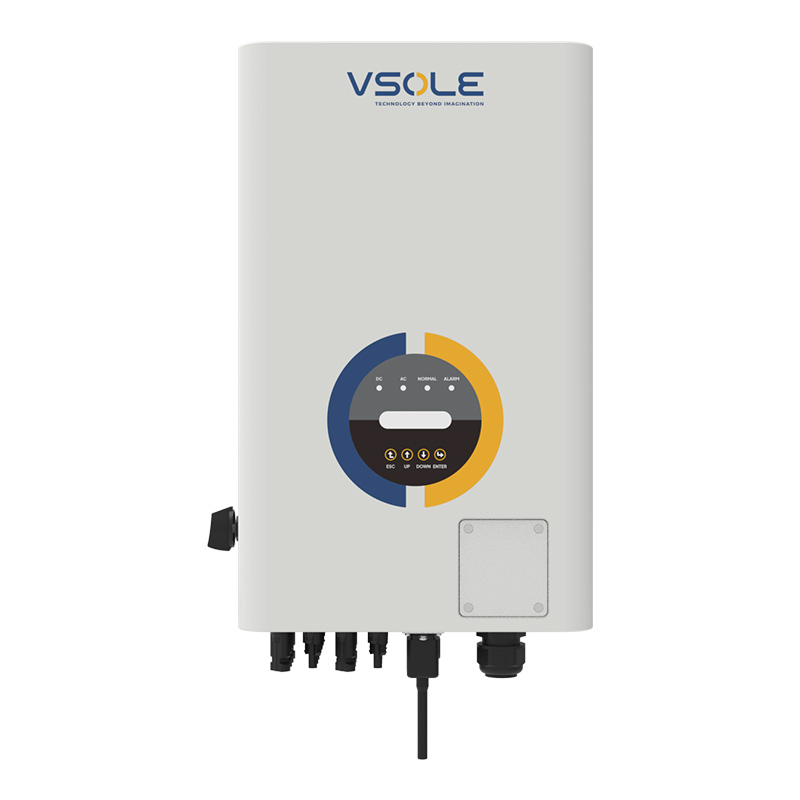

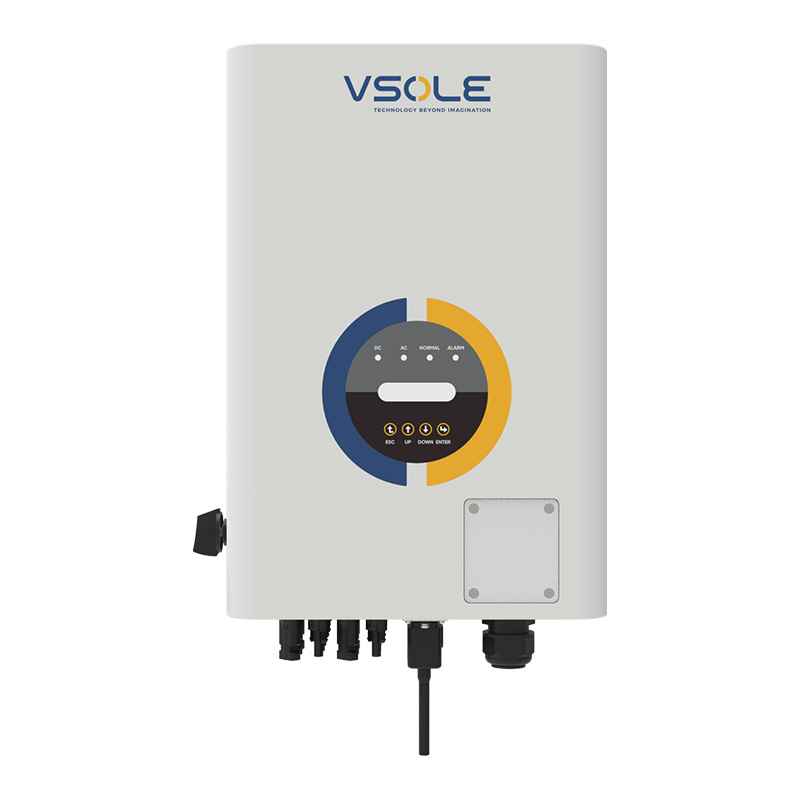

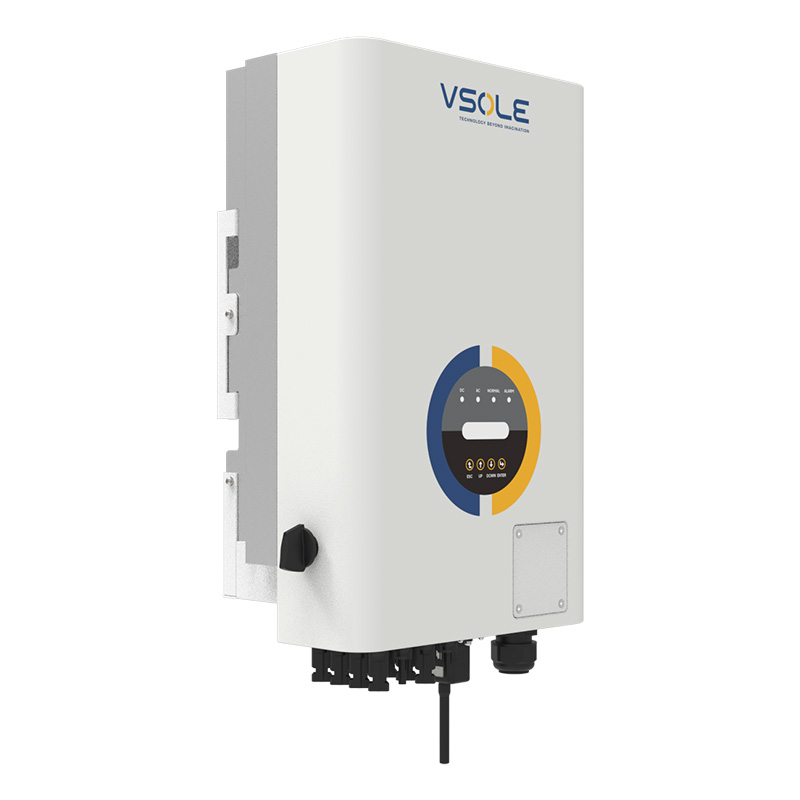

CAPACITY (KW) | 20 | 25 | 30 | 35 | ||||||||||||
MODEL NUMBER | VS-202T | VS-252T | VS-302T | VS-352T | ||||||||||||
INPUT (DC) | ||||||||||||||||
Max.DC input power (KW) | 24.0 | 30.0 | 36.0 | 42.0 | ||||||||||||
Max. DC I/P (Vdc) | 1000V | |||||||||||||||
Max. MPPT I/P Current (A) | 26A+26A | 40A | ||||||||||||||
MPPT Short Circuit Current (A) | 30A+39A | 60A | ||||||||||||||
MPPT Tracking Voltage (Vdc) | 180-1000V | 200-1000V | ||||||||||||||
Min. Start Voltage (V) | 200V | |||||||||||||||
Number of MPPT Tracker | 2 | |||||||||||||||
Strings per MPPT Tracker | 2 | 2+3 / 3 | ||||||||||||||
OUTPUT (AC) | ||||||||||||||||
Rated output power (KW) | 20 | 25 | 30 | 35 | ||||||||||||
Rated Grid Voltage (V) | 415V | |||||||||||||||
Voltage Operating Range (V) | 280-455V | |||||||||||||||
Rated Grid freq. (Hz) / Range | 50Hz (+-5%) | |||||||||||||||
Rated output current AC (A ) | 30.6 | 38.2 | 41.7 | 49 | ||||||||||||
AC Connection | 3P + N + PE | |||||||||||||||
THDI (%) | <3% | |||||||||||||||
Output Power factor | 0.9 leading to 0.9 lagging | |||||||||||||||
EFFICIENCY | ||||||||||||||||
Max. conversion Efficiency (%) | 98.5 % | 98.6 % | ||||||||||||||
Max. Euro Efficiency (%) | 97.5 % | 97.8 % | ||||||||||||||
MPPT Efficiency (%) | >99 % | |||||||||||||||
PROTECTION | ||||||||||||||||
Anti-Islanding Protection | YES | |||||||||||||||
DC Reverse Polarity Protection | YES | |||||||||||||||
Insulation Resistance Protection | YES | |||||||||||||||
Ground Fault Protection | YES | |||||||||||||||
Output Over Current Protection | YES | |||||||||||||||
Output Short circuit Protection | YES | |||||||||||||||
Output Over Voltage Protection | YES | |||||||||||||||
DC Isolator Switch | YES | |||||||||||||||
Surge Protection | DC: Type II / AC: Type II | |||||||||||||||
GENERAL DATA | ||||||||||||||||
Dimensions (W*H*D) mm | 362W*527H*220D | 362W * 577H * 215D | ||||||||||||||
Weight (Kg) | 20.0 | 25.5 | ||||||||||||||
Topology | Transformerless | |||||||||||||||
Noise Emission (dB) | ≤45dB | |||||||||||||||
Display | LED with LCD Display | |||||||||||||||
Cooling Method | Intelligent Fan Cooling | |||||||||||||||
Operating ambient Temperature | (-25°C ~ +65°C) | |||||||||||||||
Operating Humidity | 0% – 100% | |||||||||||||||
Max. Operating Altitude (m) | 2000m (>2000m Derating) | |||||||||||||||
Ingress Protection | IP65 | |||||||||||||||
Standard Warranty | 10 Years | |||||||||||||||
CONNECTION TYPE | ||||||||||||||||
DC connectors | MC-4 | |||||||||||||||
Ingress AC plug | IP65 rated plug | |||||||||||||||
Communication Modes | WiFi / GPRS / RS 485 / Local Monitoring | |||||||||||||||
Remote Monitoring | YES |
